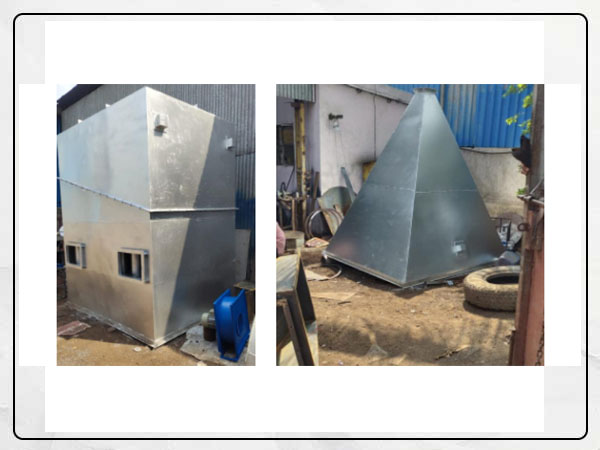

Multi Cyclone Dust Collector Manufacturers

Welcome to Thermin Energy System Pvt. Ltd. We are Multi Cyclone Dust Collector Manufacturers, Suppliers, Exporters in India. We offer many high-quality products to best suit your particular needs. Multi-cyclone dust collector uses centrifugal force to remove dust particles from an air stream. It is formed up of multiple cyclones, which are tiny, cone-shaped chambers that quickly spin the airflow. The dust particles push outward via the centrifugal force and collect in a hopper at the collector's bottom.

A Multi Cyclone Dust Collector consists of multiple components such as small diameter, cone-shaped chambers arranged in parallel called multiple cyclones, a gas inlet for the dust-laden gas stream to enter, a gas outlet for the filtered gas to exit, and a hopper at the bottom to collect the accumulated dust.

Working of Multi Cyclone Dust Collector

The operating concept of a Multi Cyclone Dust Collector is centrifugal force. This is an explanation of how it operates:

• Dusty Air Entry: Through the specified entrance, the dust-laden air stream enters the collector.
• Cyclonic Action: The tangential entry point forces the air inside each individual cyclone chamber into a fast, rotating motion. Strong centrifugal force is produced as a result.
• Dust Separation: The centrifugal force pushes the heavier dust particles outward because they can't keep up with the air circulating around them. They lose speed as they strike the cyclone walls.
• Dust Collection: The separated dust particles gather in the hopper at the bottom of the collector as a result of gravity pulling them down the cone-shaped walls.
• Clean Air Exit: The lighter, cleaner air, with most of the dust removed, continues its spiral path upwards and exits the collector through the designated gas outlet.

Features of Multi Cyclone Dust Collector:

We as multi cyclone dust collectors suppliers in India provide product with numerous features:

• Efficient Dust Collection: Because of the powerful centrifugal force produced inside each cyclone, they are particularly good at collecting gritty particles.
• Simple Design: They are simple to operate and maintain due to their uncomplicated design.
• Compact Footprint: Compared to certain other dust collectors, the parallel arrangement of cyclones enables a more space-saving design.
• Noise Level: Because of the cyclone's rapid airflow, these collector operations may produce some noise.

Benefits of Multi Cyclone Dust Collectors:

• High Dust Handling Capacity: Compared to single cyclone units, they offer a significantly larger total collection area because many cyclones are operating in combination. This allows them to handle a significant amount of dust without reducing effectiveness.
• Cost-Effective Solution: When compared to other advanced dust collection systems like Bag Filter ot bag houses or electrostatic precipitators, multi-cyclone dust collectors tend to be less expensive to buy and maintain.
• Low Maintenance Needs: These collectors have a track record for requiring little upkeep. To guarantee optimum performance, they often simply need to have the hopper cleaned on a regular basis and occasionally checked.
• Durable Design: Multi Cyclone Dust Collectors are made to survive hard industrial settings and provide dependable performance over an extended length of period.

Specification of Multi Cyclone Dust Collector

Specification	Explanation
Airflow Capacity (CFM or m³/h)	This indicates the volume of air the collector can handle per minute (CFM) or hour (m³/h). Higher airflow capacities are suitable for larger dust generation processes.
Number of Cyclones	As discussed earlier, more cyclones provide a larger total collection area and potentially improve dust capture efficiency.
Cyclone Diameter	A smaller diameter creates a stronger centrifugal force for capturing finer particles, but may limit overall airflow capacity.
Inlet/Outlet Diameters	These diameters should be compatible with the existing ductwork in your facility.
Noise Level (dB)	While Multi Cyclone Dust Collectors are generally not silent, some models may have lower noise levels for applications where noise is a concern.

Application of Multi Cyclone Dust Collector:

• Woodworking: Clearing sawdust and wood chips from the processes of milling, sawing, and sanding.
• Metalworking: Gathering dust from blasting, polishing, and grinding operations in metalworking.
• Manufacturing of plastics: Gathering plastic dust produced by shaping and molding operations.
• Food processing: Remove grain dust, flour dust, and other coarse particles from food.

A Multi Cyclone Dust Collector is an industrial air filter that uses multiple cyclones to remove coarse dust particles from an air stream. These collectors work by spinning the dust-laden air at high speeds, flinging dust particles outwards where they fall into a hopper for collection. They are a cost-effective option for industries like woodworking and metalworking due to their simple design, low maintenance, and high capacity for handling coarse dust. However, they may not be suitable for capturing extremely fine particles. Contact Thermin Energy System Pvt. Ltd. Multi Cyclone Dust Collector Manufacturers, Suppliers, Exporters in India to find best suited product to your need.
